The newly designed HMD56&HMDK56 forming machines, which the forming and cutting are done in one station, is especially suitable for sheet forming with high shrinkage material, such as PP. This model is precise, reliable, easy to operate, and has significant advantages of high efficiency, high quality and low cost.
It is widely used in the production of pressure forming of PP, APET, CPET, PS, PVC, OPS, PEEK, PLA and other materials. Maximize production output with lower production costs.

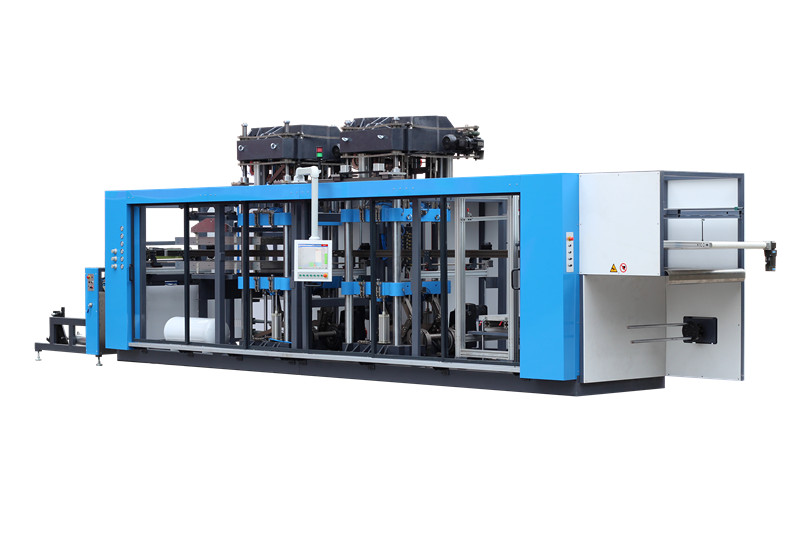

HMD56&HMDK56 Two/Three Stage Forming Machine
● Integrated forming( in-mold cutting), stacking, waste winding station, sheet stock treatment is more smooth, and energy consumption is less
● Forming station use firm cast iron structure, matched with roller bearing's crankshaft to ensure perfect forming.
● The workbench on the forming station is equipped with an independent servo-driven auxiliary stretching head to make the product forming perfectly
● The forming station increases the tension bar structure, so that the forming station has the in-mold cutting function and ensure the longer service life of the cutting knife
● The stacking method includes: stacking up, stacking AB, completely cutting the products and stacking with robot, etc.
Technical Data | HMD56 | HMDK56 |
Maximum forming area | 760x540 mm | 760x540 mm |
Minimum forming area | 375x350 mm | 375x350 mm |
Maximum mold dimension | 780x560 mm | 780x560 mm |
Height over sheet material forming part | 150 mm | 150 mm |
Height under sheet material forming part | 150 mm | 150 mm |
Dry cycle speed | 45 cycles/ min | 45 cycles/ min |
Maximum film width | 810 mm | 810 mm |
Operating pressure | 6 bar | 6 bar |
