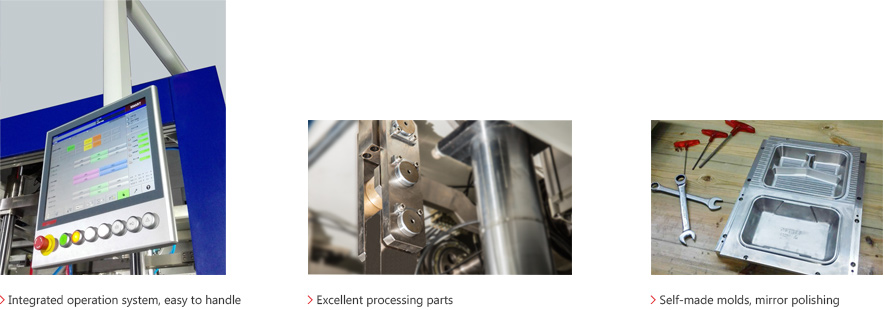

Single Station Forming Machine, precisely processed parts, matching self-made mold, mirror polishing. Integrated operating system, easy to operate.

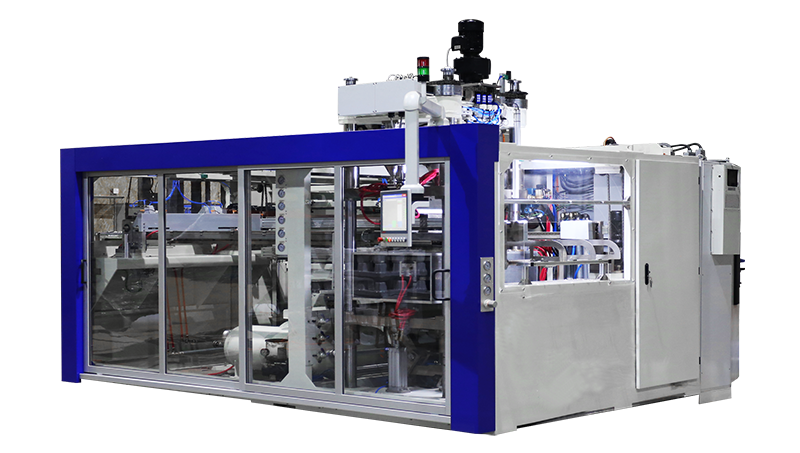

HMD50&HMD60 Single station forming machine
● More effective in energy and material utilization.
● Efficient vitrified heating component used in Heating System.
● Stage in forming station is equipped with independent servo drive.
● HMD50 is provided with pre-scavenging function that makes products forming in place.
Technical Data | HMD50 | HMD60 |
Maximum forming area | 703x513 mm | 765x575 mm |
Minimum forming area | 260x250 mm | 375x270 mm |
Maximum mold dimension | 728x538 mm | 790x600 mm |
Maximum mold weight | 150 kg | 300 kg |
Height over sheet material forming part | 75 mm | 150 mm |
Height under sheet material forming part | 50 mm | 120 mm |
Dry cycle speed | 45Cycles/Minute | 45Cycles/Minute |
Maximum film width | 760 mm | 820 mm |
Operating pressure | 6 bar | 6 bar |
